MICTUNING LCD Display DC Battery Monitor Meter 0-200V Voltmeter Ammeter with 9 Measurement Functions for Automobile Solar System
 |
| MICTUNING LCD Display DC Battery Monitor Meter 0-200V Voltmeter Ammeter with 9 Measurement Functions for Automobile Solar System |
The best product you are looking for is "MICTUNING LCD Display DC Battery Monitor Meter 0-200V Voltmeter Ammeter with 9 Measurement Functions for Automobile Solar System". This product is available and ready to be purchased. Get attractive discounts every time you shop in our store (aliexpress.com). Aliexpress also provides a coupon of $ 3 for the first buyer to shop there. don't forget to bookmark our store page so you can go shopping again anytime..
| Name | Details |
|---|---|
| Buy now just | |
| Discount | 11 |
| Product id | 4000076409220 |
| Vendor | M Innovation Store |
| Category | Automobiles & Motorcycles - Auto Replacement Parts |
Buy Now On Aliexpress
Description :
Check This Video Reviews £10 Battery Shunt From eBay Review // Maxz Vanlife 028
Check This Video Reviews Mictuning Lcd Display Dc Battery Monitor Meter 0 200v Voltmeter Ammete
MICTUNING LCD Display DC Battery Monitor Meter 0-200V Voltmeter Ammeter for Cars RV Solar System
Specifications:
Power: Measuring range: 0-20000W
Voltage: Measuring range: 0-200V
(when the test voltage is<8V, please use the independent power supply mode)
Current: Measuring range: 0-100A
Impedance: Measuring range: 0-1000Ω
Internal resistance: Measuring range: 0-999mΩ
Capacity: Measuring range: 0-1000AH
SOC: Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy
Energy consumption: Measuring range: 0-9999kWh (Note: 1Wh=0.001kWh=0.001 Kilowatt)
Running time: Measuring range: 0-999 hours (without load the time will not accumulate)
Measurement accuracy: 1%

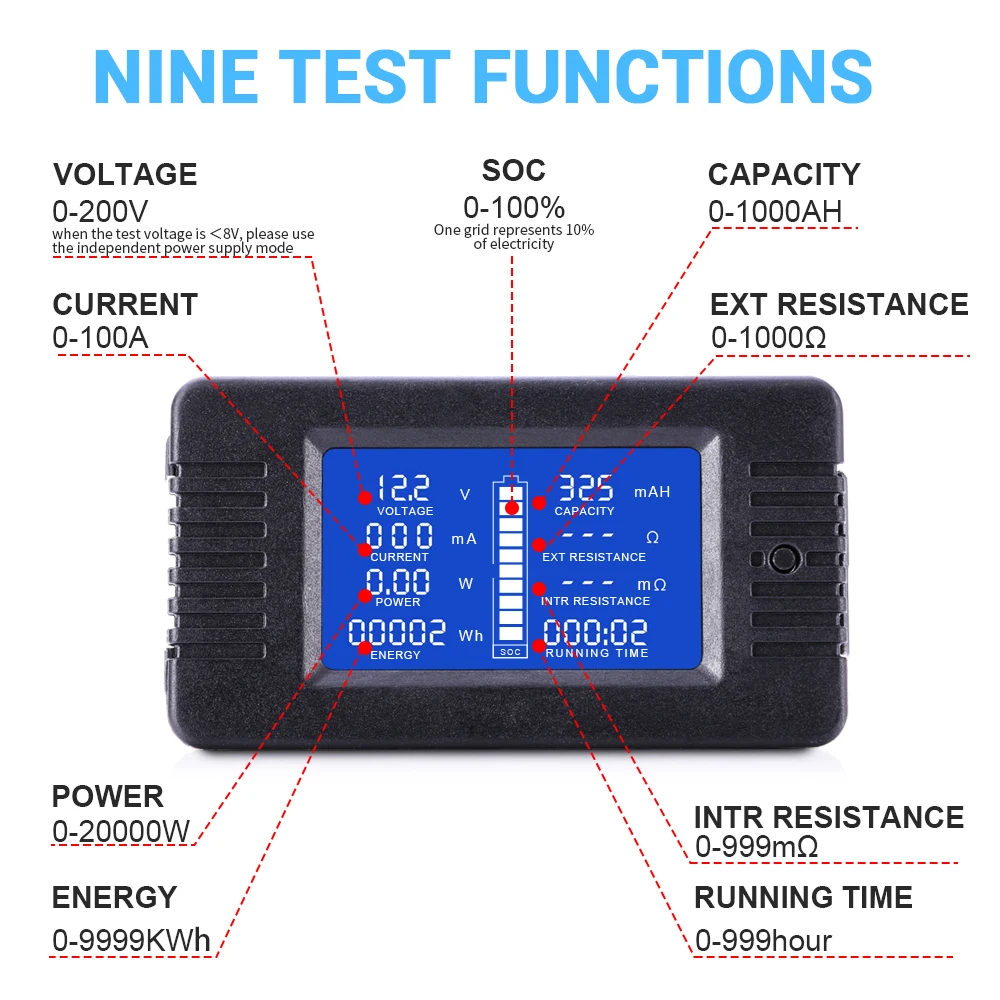

1. 9 Measurement Functions - One interface displays 9 kinds of measurement parameters at the same time, including voltage(0-200V), current(0-100A), power(0-20000W), impedance( 0-1000Ω), internal resistance(0-999mΩ), capacity(0-1000AH), SOC, energy consumption(0-9999kWh) and running time(0-999h).
2. Better Visual Experience - LCD HD display, 360° viewing without dead angle, with backlight function, it is clearly visible whatever day or night.

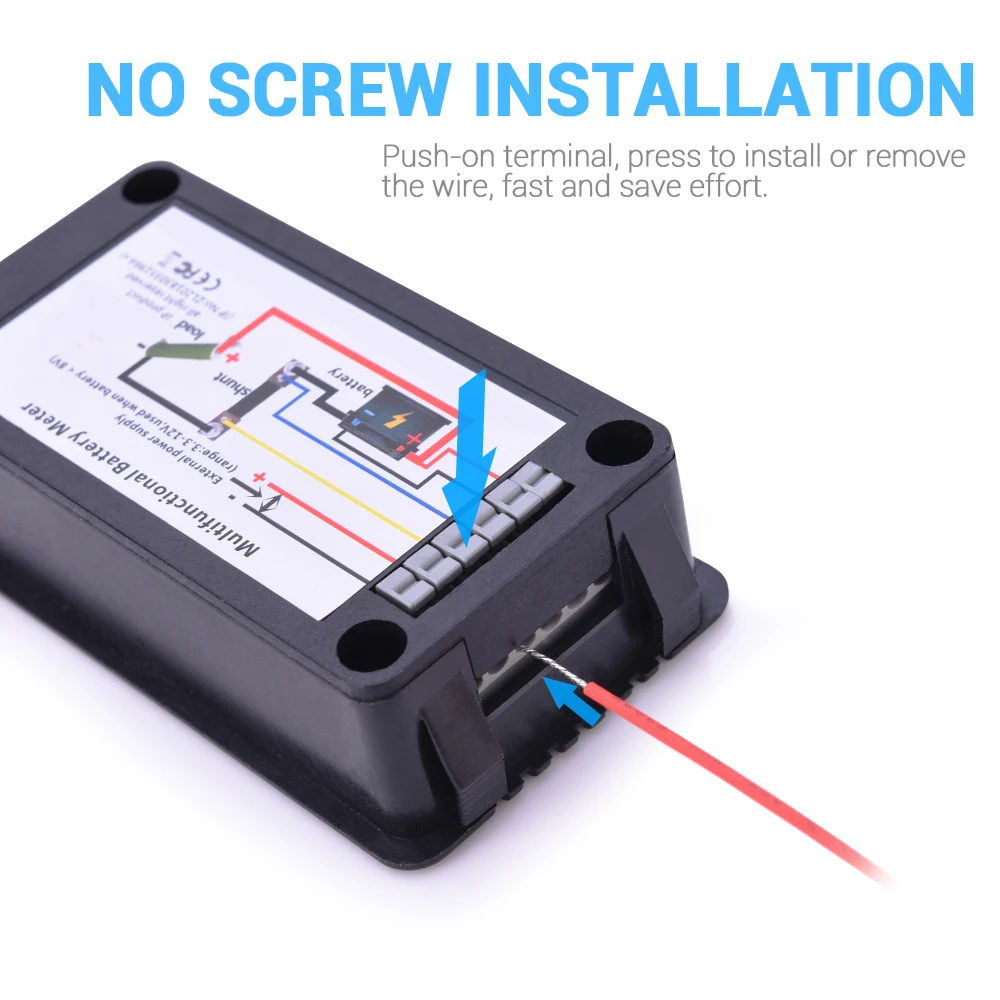

3. No Screw Installation - With the installation design of the push-on terminal, it is easy and convenient to install and remove the wires without the screws.
4. Accurate Measurement - High precision chip control, efficient and stable operation, safe and reliable welding process, measurement accuracy reaches 1%.
5. Wide Application - Wildly used in the automobile, solar system, industrial assembly line, etc.
Monitor your battery faster and more comprehensively!
MICTUNING DC battery monitor meter is mainly used to measure the voltage, current, resistance, internal resistance, capacity, SOC, energy consumption and running time of various types of batteries, and display the measurement data through the LCD screen.
The LCD HD display screen, combined with the backlight function, makes it easy to read the displayed data, giving you an excellent visual experience.
High precision chip control, efficient and stable internal operation, accurate measurement, measurement accuracy up to 1%.
Push-on terminal, press to install or remove the wire, fast and save effort.
Wildly used in the Automobile, solar system, industrial assembly line, etc.
Notes:

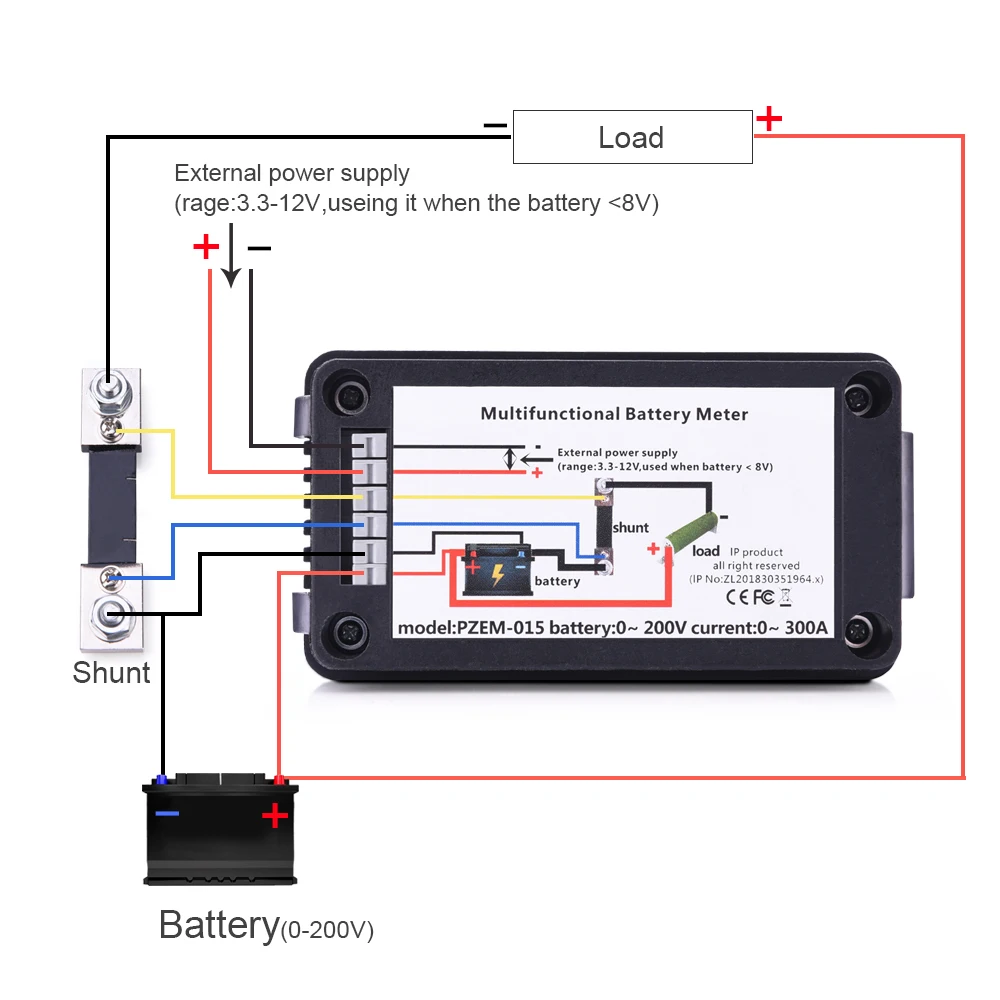

1. Wiring order cannot be wrong.
2. This meter is suitable for indoor use ONLY.
3. Applied load should not exceed the rated power or current.
4.Need a pointing tool to press the function button to prevent accidental touch.
5.The current is set according to the specification of the shunt.
Package includes:
1x DC battery monitor meter
1x 100A shunt
5x wiring
